A washing machine hose failure or a slow valve weep is one of the most expensive hidden hazards in residential home maintenance. While a localized shower spill is easy to spot, an appliance leak tucked behind a bulky laundry pair can silently pool for months before anyone notices.

Whether your laundry setup rests on typical North American engineered wood joists with 3/4-inch (19 mm) OSB/plywood subfloors, or on a European/Singaporean concrete slab topped with screed, standing water is devastating. It warps Luxury Vinyl Plank (LVP), rots structural timber, and causes costly tenant-insurance claims in multi-story condos.

For homeowners running modern side-by-side laundry appliances, finding a single containment tray that accommodates both machines has historically been difficult. Standard builder-grade trays only fit one compact unit.

The YLNJT 58" × 34.5" (147.3 × 87.6 cm) Silicone Washing Machine Drain Pan offers a purpose-built containment solution for full-width side-by-side setups.

Verified Choice

YLNJT 58" x 34.5" Heavy-Duty Silicone Washer & Dryer Pan

Specially designed for side-by-side washer and dryer setups. Features 1-inch (2.5 cm) raised waterproof containment edges, heavy-duty tear-resistant silicone, and built-in anti-vibration surface grip.

View on Amazon

The Hidden Cost of Laundry Room Leaks

According to insurance restoration data, washing machine failures consistently rank among the top five causes of indoor residential water damage. The risk factors stem from four primary points of failure:

Pressurized Supply Hoses: Standard rubber hoses experience constant line pressure (often 40 to 70 PSI / 2.7 to 4.8 bar) and can burst unexpectedly.
Internal Pump & Gasket Seeps: Front-load door boots and internal drain pumps develop micro-cracks over 5–7 years of cycling.
Filter Cleanout Spills: Clearing the lint and coin trap on front-loaders routinely discharges 0.5 to 1.5 gallons (2 to 6 liters) of dirty greywater directly onto the floor.
Condensation & Steam Runoff: Modern heat-pump dryers and steam cycles can generate unexpected pan accumulation if the condensate tray overflows or disconnects.

Subfloor Vulnerabilities Compared: US vs. Europe & Singapore

Region / Construction Type	Typical Floor Build-Up	Primary Risk from Undetected Leaks
United States & Canada	2x10 / I-Joists + 3/4" (19 mm) Plywood / OSB	Subfloor delamination, mold colonization, joist rot, ceiling collapse into the room below
Europe (UK, Germany, France)	Concrete slab + 2" (50 mm) sand-cement screed	Water migration beneath perimeter expansion strips, debonding glued parquet, damp masonry
Singapore & Asian High-Rises	Reinforced cast-in-place concrete slab	Moisture seepage through hairline slab cracks, damaging lower-unit ceiling finishes

On wood subfloors, drying out water-soaked plywood often requires tearing out entire runs of cabinetry, baseboards, and finish flooring. A simple 1-inch (2.5 cm) barrier under the machines prevents these catastrophic structural repairs.

Why Silicone Outperforms Traditional Rigid Plastic Pans

For decades, contractors relied on thermoformed ABS or polystyrene plastic drain trays. In real-world installations, rigid plastic presents several serious drawbacks:

1. Brittleness and Cracking Under Load

A modern high-efficiency front-load washing machine weighs 200 to 240 lbs (90 to 110 kg) empty, and easily exceeds 300 lbs (136 kg) when filled with water and wet laundry. When the machine spins at 1,200 to 1,400 RPM, the cyclic vibration creates micro-fatigue in rigid plastic trays. Within a couple of years, the corners crack, defeating the waterproof barrier.

By contrast, food-grade flexible silicone does not turn brittle, will not crack under heavy concentrated footings, and naturally absorbs vibration without structural stress.

2. High Installation Friction

Wrestling a 220 lb (100 kg) washing machine over a stiff 2-inch (50 mm) plastic rim inside a tight 60-inch (152 cm) laundry closet frequently cracks the lip during initial setup. A silicone mat features flexible sidewalls that can easily be folded down while walking or rolling the appliance into place, popping back into their raised upright profile once the feet settle.

3. Vibration Dampening & Acoustic Isolation

In lightweight wood-frame construction and multi-family condos, washer spin cycles can transmit low-frequency hums into adjacent bedrooms. Silicone acts as an elastomeric isolator, attenuating high-frequency mechanical hum and preventing hard appliance feet from scuffing delicate flooring finishes.

Sizing Breakdown: Dual-Machine Dimensions

Most standard residential full-size washers and dryers in North America measure 27 inches (68.6 cm) wide and 30 to 33 inches (76 to 84 cm) deep.

When installed side by side with the required 1-inch (2.5 cm) clearance between units for air circulation and vibration clearance, two machines occupy:

Width Calculation: 27" (Washer) + 1" (Clearance) + 27" (Dryer) = 55 inches (139.7 cm) required appliance width.

The YLNJT pan measures 58 inches (147.3 cm) wide by 34.5 inches (87.6 cm) deep, providing approximately 1.5 inches (3.8 cm) of perimeter buffer on every side.

Overall Footprint: 58" × 34.5" (147.3 cm × 87.6 cm)
Raised Edge Height: 1.0 inch (2.5 cm)
Design: Seamless, no-drain-hole containment tray
Compatibility: Side-by-side washers and dryers, double laundry pairs, or stacked combos with auxiliary folding space.

With a 1-inch (2.5 cm) lip around the 58" × 34.5" perimeter, the pan can safely retain approximately 8.5 to 9.5 gallons (32 to 36 liters) of water before overflowing—more than enough capacity to contain pump weepage, disconnected drain lines, or typical valve failures until you notice them.

Step-by-Step Installation Guide

Installing a full-width silicone mat in a finished laundry closet or utility room is straightforward:

Step 1: Prep the Floor Surface

Sweep and vacuum the laundry floor thoroughly. Ensure there are no sharp screed burrs, protruding flooring staples, or grit that could abrade the underside of the silicone under high appliance load.

Step 2: Unroll and Acclimate

Because the mat is shipped rolled or folded, lay it flat at room temperature (approx. 68°F to 72°F / 20°C to 22°C) for 30 minutes. The silicone will naturally relax into a flat position with straight, upright sidewalls.

Step 3: Positioning the Edge

Align the back edge of the pan allowing 1 to 2 inches (25 to 50 mm) of clearance from the drywall to accommodate rear drain standpipes, hot/cold supply valves, and 4-inch (100 mm) dryer transition ducts.

Step 4: Placing the Appliances

When sliding the washer and dryer into position, fold the front silicone lip downward. Once the appliances are seated on their leveling legs, verify that the front edge springs back upright. Check each unit with a 24-inch (60 cm) spirit level and adjust the appliance feet so that the drum remains balanced.

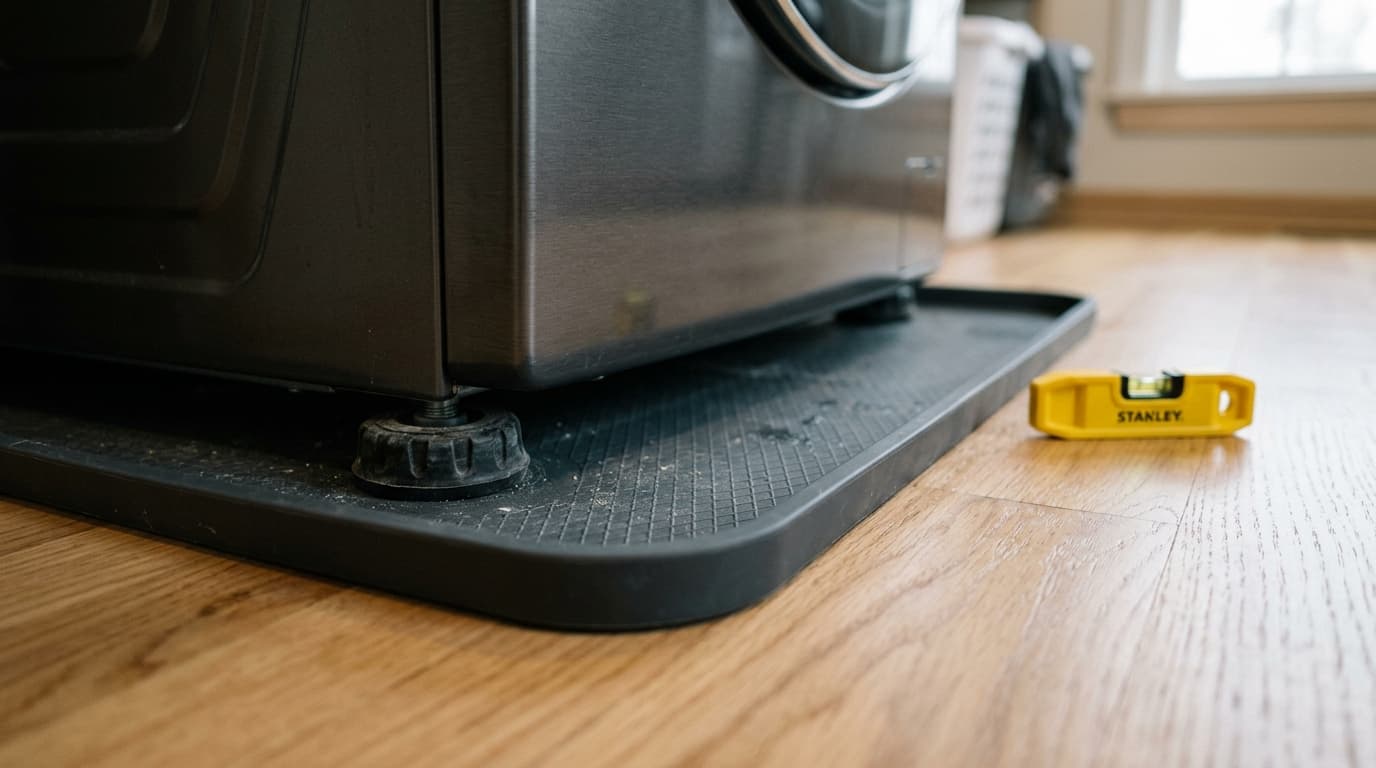

Washing machine leveling foot positioned inside the heavy-duty silicone drain mat on hardwood flooring

Final Recommendation

If you have an existing or upcoming side-by-side laundry layout—especially on second-floor living areas, finished basements, or luxury wood/LVP flooring—a unified containment mat is an indispensable insurance policy.

At a fraction of the cost of remediation or subfloor replacement, the YLNJT 58" × 34.5" Silicone Drain Pan delivers peace of mind, acoustic dampening, and reliable water containment.
